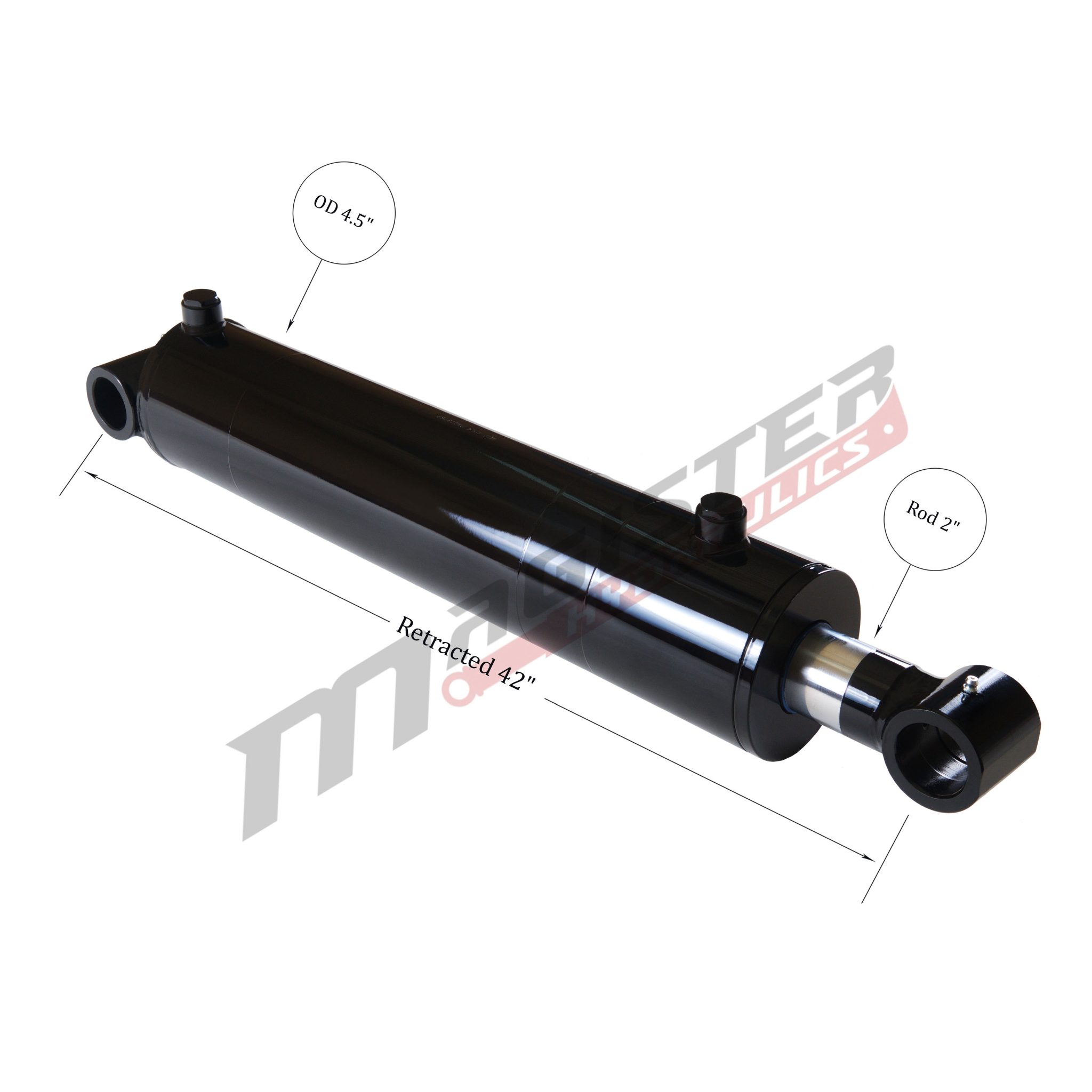

4″ bore x 32″ stroke cross tube hydraulic cylinder

Description

Bore : 4 in
Outer Dia. () : 4.5 in
Stroke : 32 in
Rod Dia. () : 2 in
Port Size : SAE 8
Pin Dia. () : 1.5 in
Extended : 74 in
Retracted : 42 in
Overall length : 44.25 in
Pressure : 3500 PSI
Column Load : 32,000 LBs
Oil Volume : 6.96 QTs
Design : Welded
Rod Type : Chrome Plated
Rod End : Cross Tube
Action :
Double Acting
Weight : 90 LBs
