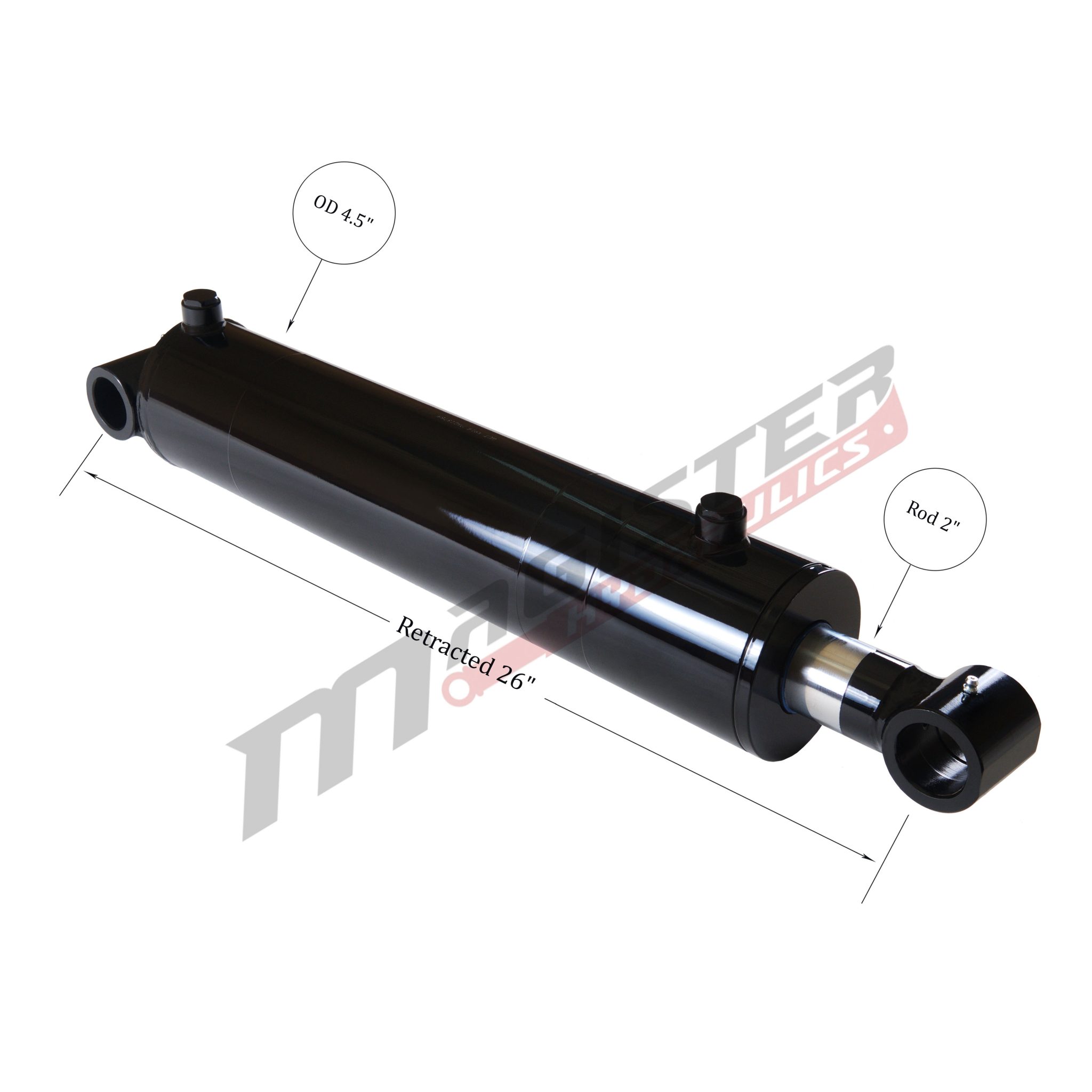

4″ bore x 16″ stroke cross tube hydraulic cylinder

Description

Bore : 4 in
Outer Dia. () : 4.5 in
Stroke : 16 in
Rod Dia. () : 2 in
Port Size : SAE 8
Pin Dia. () : 1.5 in
Extended : 42 in
Retracted : 26 in
Overall length : 28.25 in
Pressure : 3500 PSI
Column Load : 37,700 LBs
Oil Volume : 3.48 QTs
Design : Welded
Rod Type : Chrome Plated
Rod End : Cross Tube
Action :
Double Acting
Weight : 58 LBs
