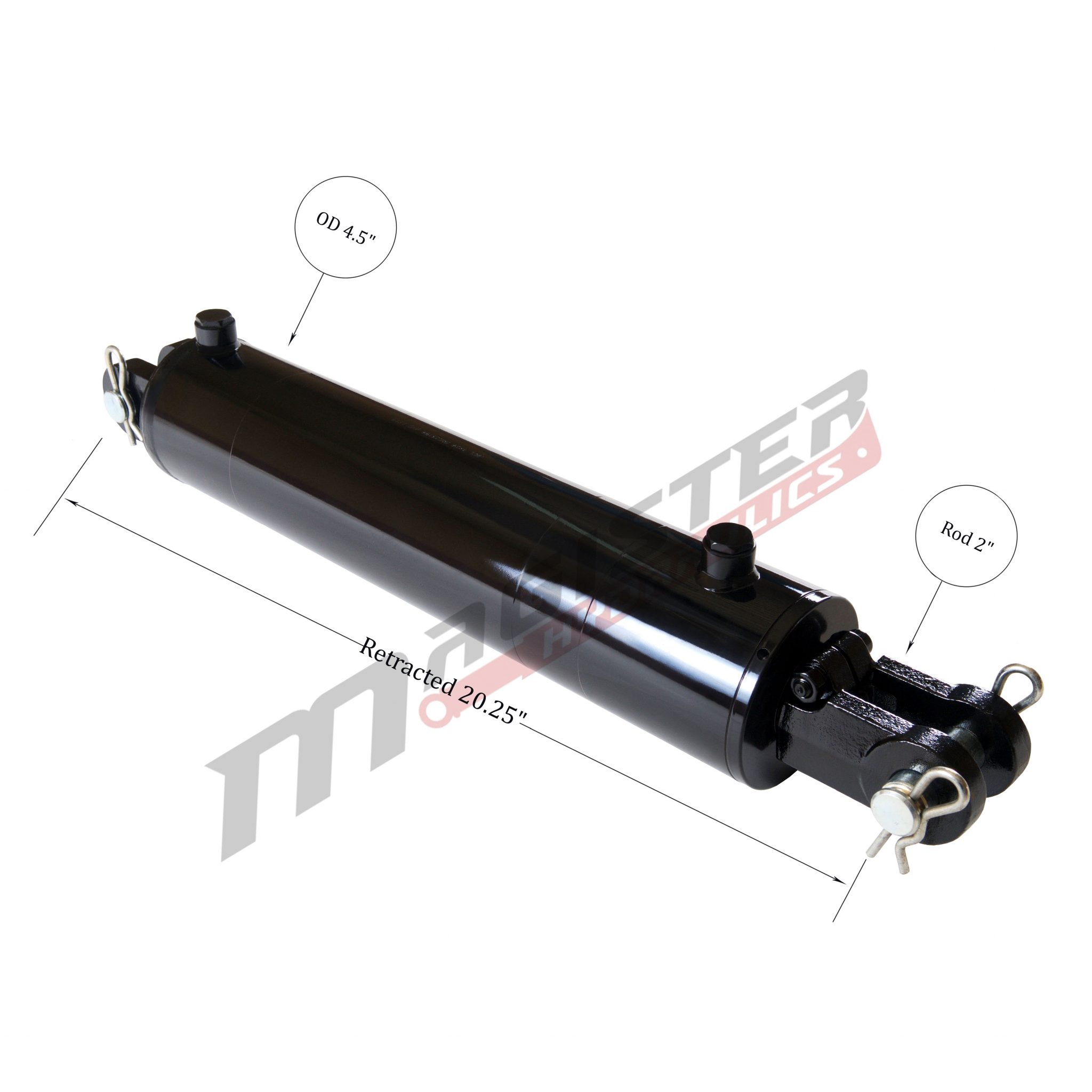

4 bore x 8 ASAE stroke hydraulic cylinder, welded clevis double acting cylinder

Description

Bore : 4 in
Outer Dia. (?) : 4.5 in
Stroke : 8 in ASAE
Rod Dia. (?) : 2 in
Port Size : SAE 8
Pin Dia. (?) : 1 in
Extended : 28.25 in
Retracted : 20.25 in
Overall length : 22.25 in
Pressure : 3500 PSI
Column Load : 37,000 LBs
Oil Volume : 1.74 QTs
Design : Welded
Rod Type : Chrome Plated
Rod End : Clevis
Action :
Double Acting
Weight : 45 LBs
