#10 ORB 3 PORT FLOW CONTROL W/RV 16 GPM

Description

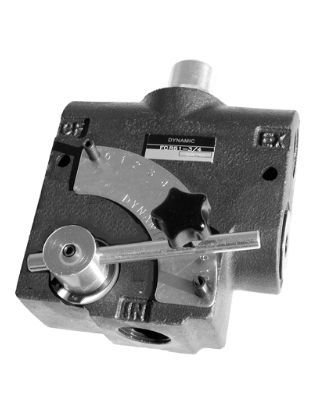

Model DFC-51 is a full-range pressure compensating variable flow control. It
is designed so that the orifice area varies as the lever is rotated. The outlet
flow is smooth and constant regardless of the pressure on the control flow
or excess flow ports. An adjustable ball spring relief allows for pressure
compensated flow up to the pressure setting on the relief with accuracy to
150psi. Relief valves are preset at 2100 psi and field adjustable from 75 to
3000 psi. Weight: 9.00 lbs.
