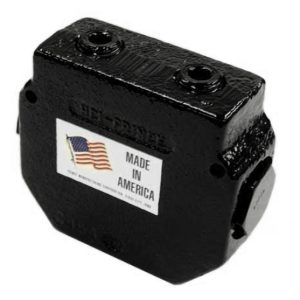

1/2″ NPT PROPORTIONAL FLOW DIVIDER W/FREE RETURN

Description

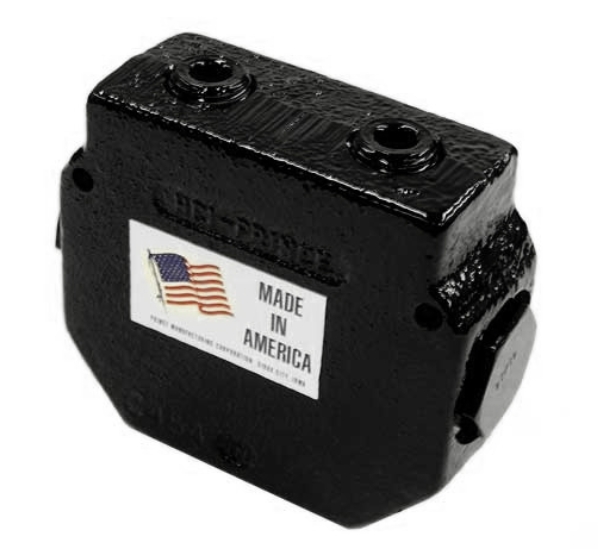

The PRINCE model RD-300 valve is a pressure compensated proportional flow divider. The standard models of this valve will take one inlet flow and split it into two nearly equal outlet flows. The valve is also available with special ratio spools which will split the flow into two flows proportional to the ratio specified. Because the valve is pressure compensated the valve will maintain the divider ratio with quite different loads on the outlet ports as long as the inlet flow is within the range given in the chart below. The valve free has reverse checks. This allows the reverse flow of oil from the outlet ports to the inlet port. The reverse flow is not pressure compensated.
